Ceramic Fiber Mat

No skin irritation... No dusting and no fiber shedding... Nearly 180 degrees bendable... Temperature resistance up to 2300°F (1260°C)

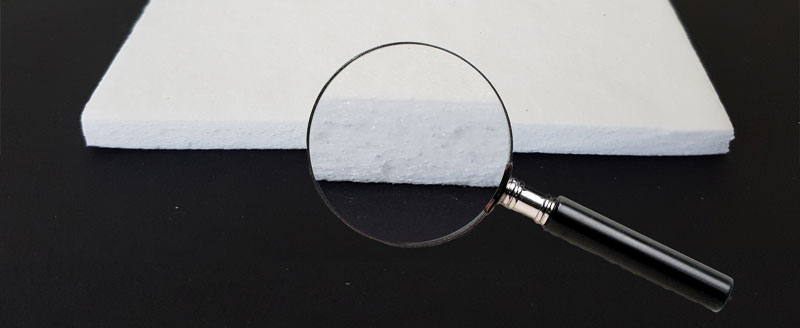

Our specially developed Soft-Touch® Ceramic Fiber Mat not only offers temperature resistance up to 2300°F (1260°C). Its smooth surface does not itch or irritate the skin. The Soft-Touch® Mat was designed to prevent dust and fibers from shedding. That makes the mat perfect for vibrating applications. The Soft-Touch® Mat is highly flexible and can be bend nearly 180 degrees without cracking.



Product Specifications

Properties US Metric
Silica-Alumina
90 to 97%
Loss on Ignition
3 to 9%
Tensile Strength
≥ 15.95 psi

≥ 110 kPa

Service Temperature
Continuous
1830°F
1000°C
Short Term
2300°F
1260°C
Thermal Conductivity
BTU in/ (hr ft² °F)
W / (m K)
70°F / 20°C
0.27
0.04
750°F / 400°C
0.69
0.10
1100°F / 600°C
1.25
0.18
Thickness
0.16 to 0.31 inch
4 to 8 mm
Area Weight
2.9 to 5.2 oz/sf
900 to 1600 g/m²
